K2 Systems MultiRail mit EPDM Band für Trapezblech - Einfache und schnelle Montage mit dem K2 MiniRail Montagesystem für Trapezblechdächer aus Aluminium und Stahl
Aluminium Montageschiene zur direkten Modulbefestigung auf Trapezblech, oder als Basis für Kreuzverbund zur Direktmontage auf Dachverschalungen, Trapezblech und Blechdächer. In universellen Längen verfügbar. Einfache und schnelle Befestigung mittels Bohrschrauben.
Die kurze Aluminium-Montageschiene K2 MultiRail zur Direktmontage auf Dachverschalungen, Trapezblech oder Blechdächer

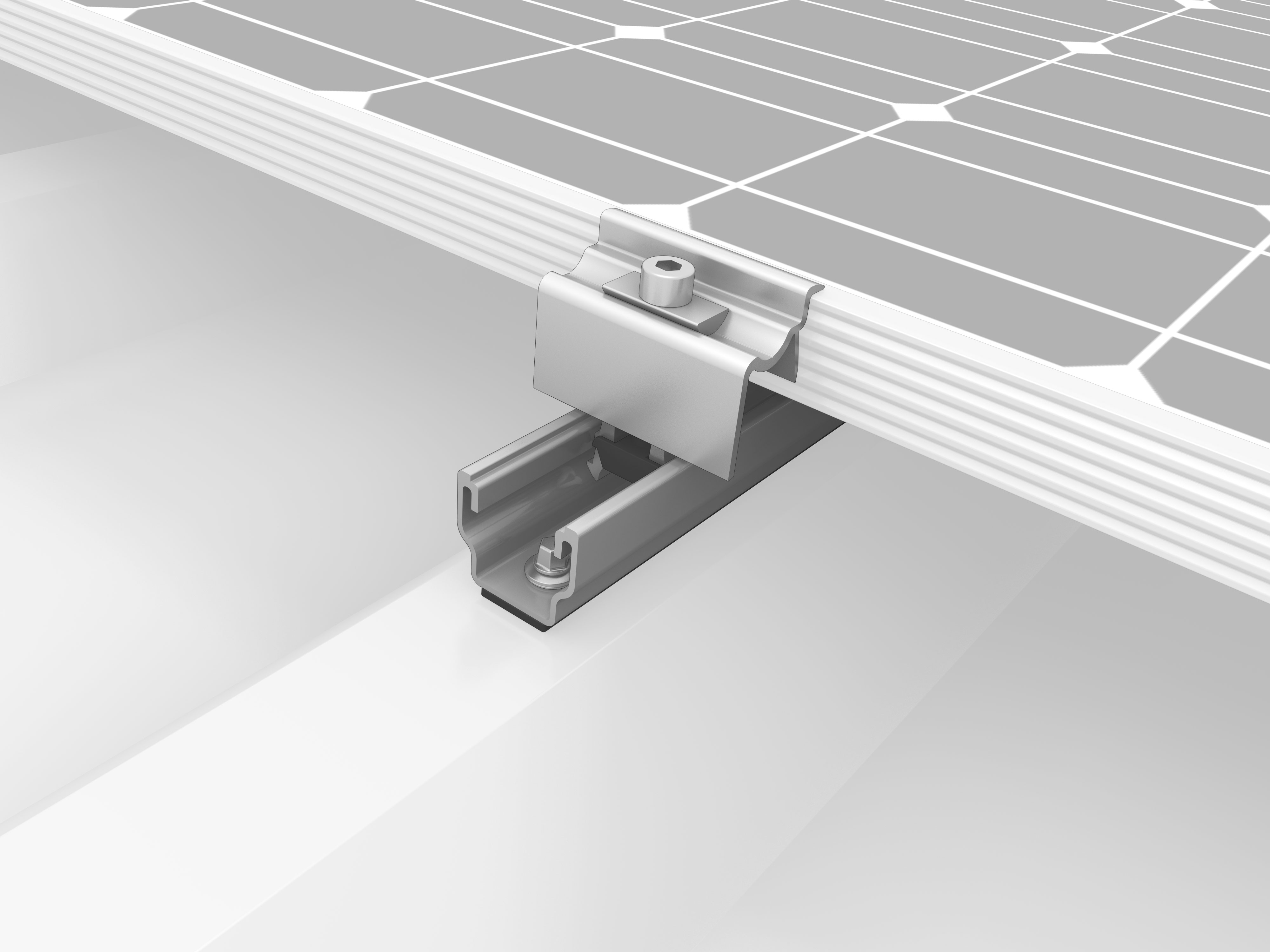

Direkte Modulbefestigung

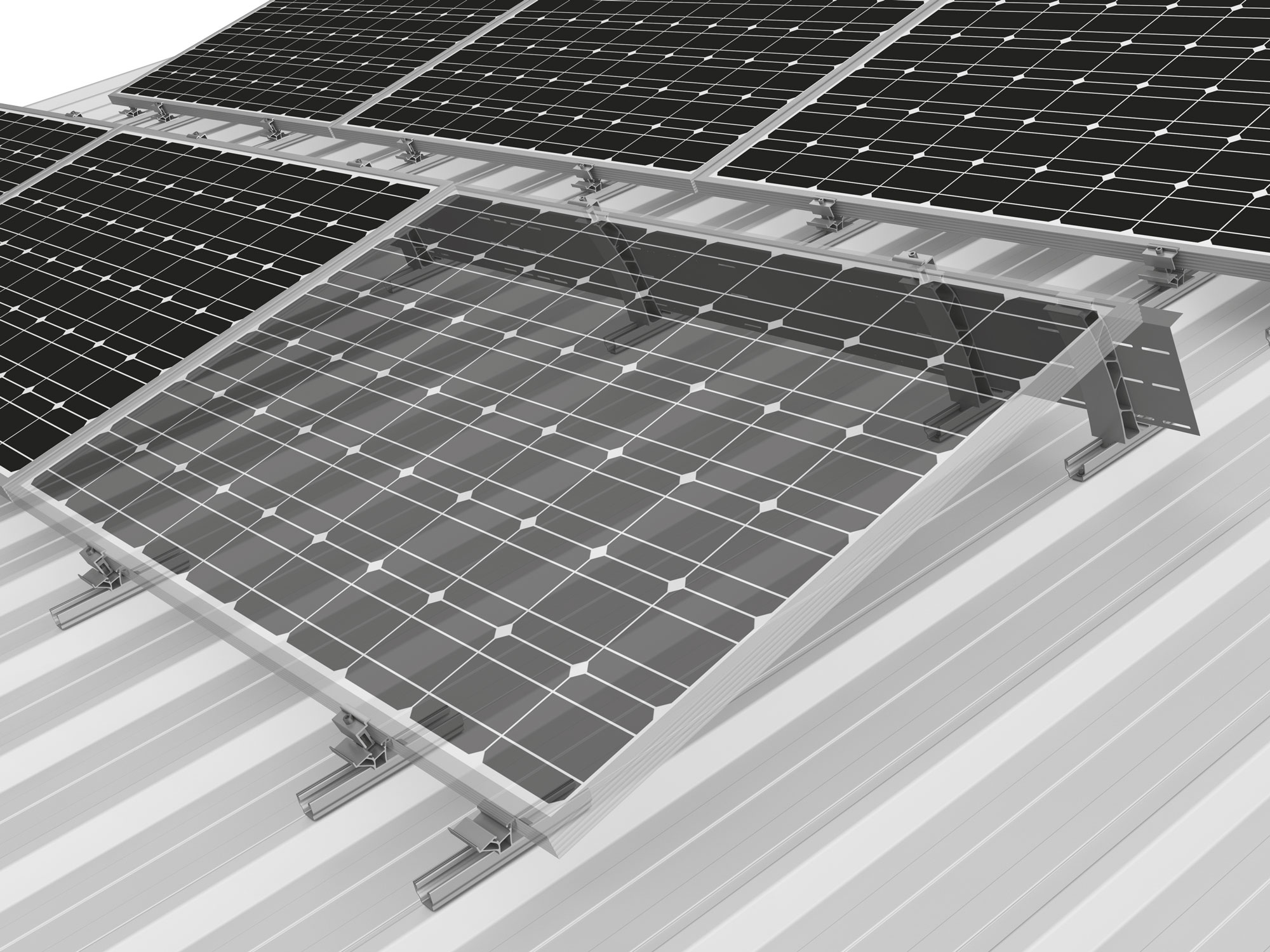

Kann auch als Basis für Kreuzverbunde verwendet werden
Sehr montagefreundlich durch einfache Systemkomponenten
Modulare Bauweise ermöglicht jede Anlagengröße
Voraussetzungen:
- Schrägdächer 5 - 75° mit Trapezblech oder Sandwich-Trapezblech
- Blechstärken: ≥ 0,4 mm Stahl und ≥ 0,5 mm Aluminium
- Sandwich-Trapezblech: Freigabe des Herstellers erforderlich
- Sickenbreite: Min. 22 mm Hochsickenbreite, Ebene Auflage um das Bohrloch: . ≥ 20 mm
- Hochsickenradius bei Wellblech: r = 22 - 45 mm
Ausführliche Produktbeschreibungen und Maße entnehmen Sie bitte dem Datenblatt
und dem Gesamtkatalog unten zum Download.
Bitte fragen Sie uns an!
Gerne projektieren wir Ihre Photovoltaikanlage individuell und stellen Ihnen die passenden Komponenten für das Montagesystem inkl. Modulbelegungsplan zusammen.
Dachart: | Satteldach |
---|---|
Dacheindeckung: | Trapezblech |
